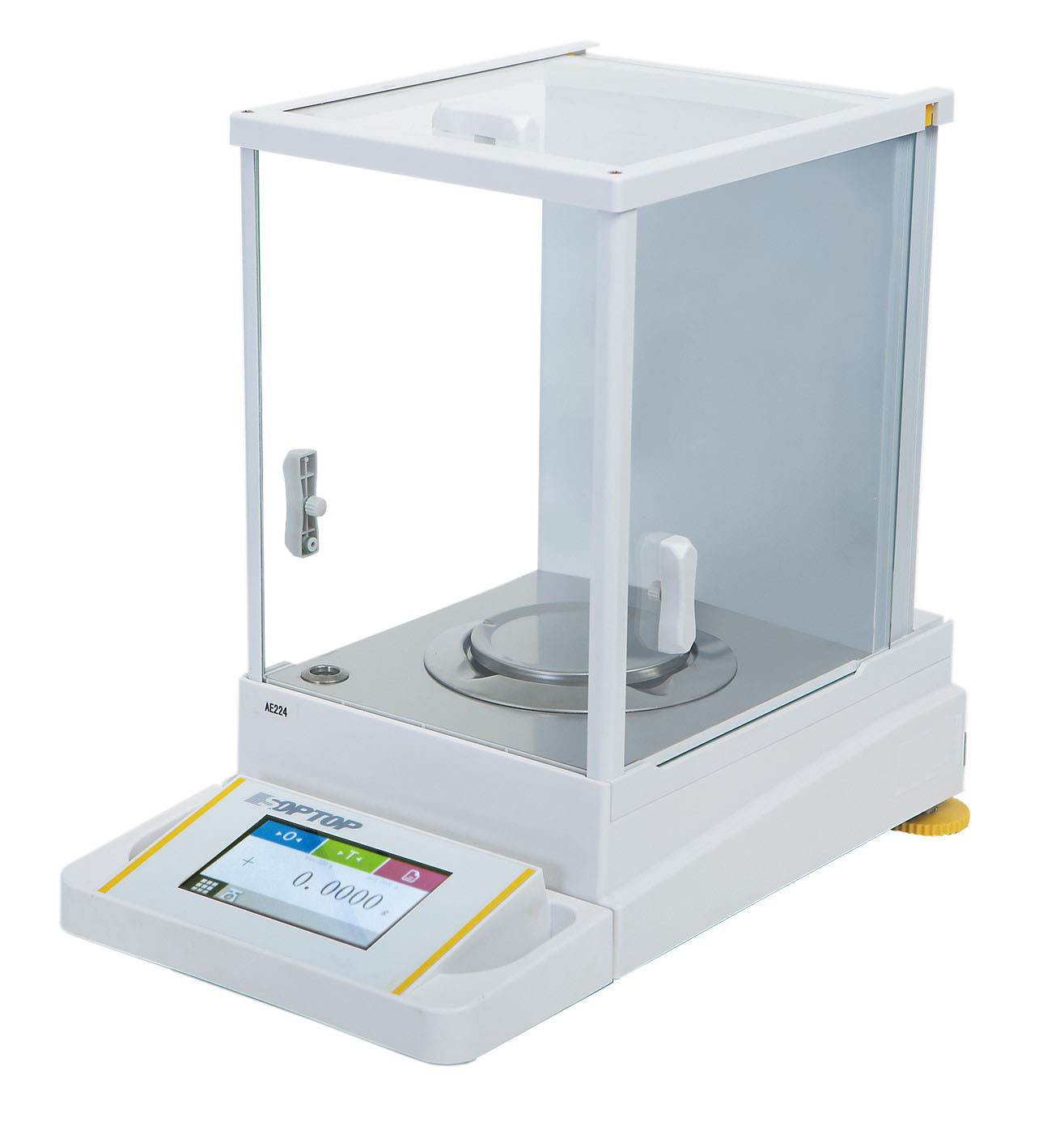

Touch Color Screen Electronic Analytic Balance

Touch Color Screen Electronic Analytic Balance

Introduction

  1. Big color screen: Large screen, TFT LCD monitor, provide abundant weighing display information, convenient to read.
  2. Full screen touch: in line with the laboratory touch solutions for work habits, even wear gloves more pieces, it can be operated.
  3. User interface: application of Metro color scheme, using the green color, the eye won’t tired long for long time work.
  4. User operation: abundant operation information tips, help users to finish the work more efficient.
  5. The built-in programs: the standard for easy to use the built-in applications, for all kinds of weighing task.
  6. Screen protective cover: provide additional dustproof and stroke prevention; prolong the service life of balance
  7. The glass door transportation protection lock: effective provide balance protection of transportation.
  8. The overload protection scale: the unique structure design can effectively protect the sensor.
  9. Level regulating system and level indicator: fit ergonomic level regulating system and leading level indicator, convenient user level adjustment.
  10. Unit conversion: fast unit conversion makes the operation more convenient, clear and intuitive.

Optical Specifications

Code No. GBA124 GBA224 GBA223 GBA 323 GBA 523
Actual Scale Interval g 0.0001 0.0001 0.001 0.001 0.001
Weighing Capacity g 120 220 220 320 520
Repeatability g 0.0001 0.0001 0.001 0.001 0.001
Calibration weights g 100 200 200 200 500
Type External Calibration
Dimension mm 365×223×338
Packing Measurement mm 500×310×450
Pan Size mm Ф90
Wind Shield Effective Volume mm 160×165×200





Code No. GBA 124C GBA 224C GBA 223C GBA 323C GBA 523C
Actual Scale Interval g 0.0001 0.0001 0.001 0.001 0.001
Weighing Capacity g 120 220 220 320 520
Repeatability g 0.0001 0.0001 0.001 0.001 0.001
Calibration weights g 100 200 200 200 500
Type Internal Calibration
Dimension mm 365×223×338
Packing Measurement mm 500×310×450
Pan Size mm Ф90
Wind Shield Effective Volume mm 160×165×200
Net Weight Kg 5.5
Gross Weight Kg 8
Net Weight Kg 5.5
Gross Weight Kg 7.5
